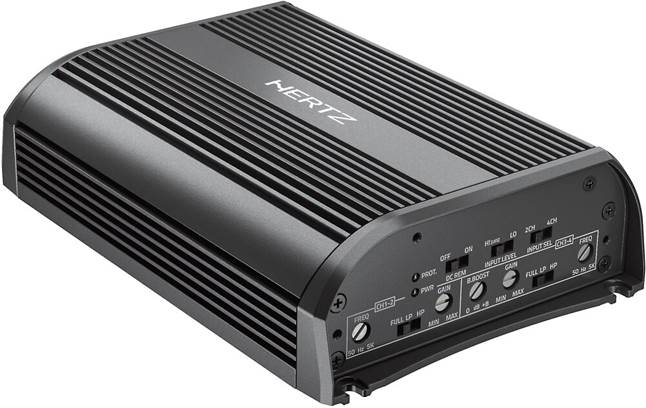

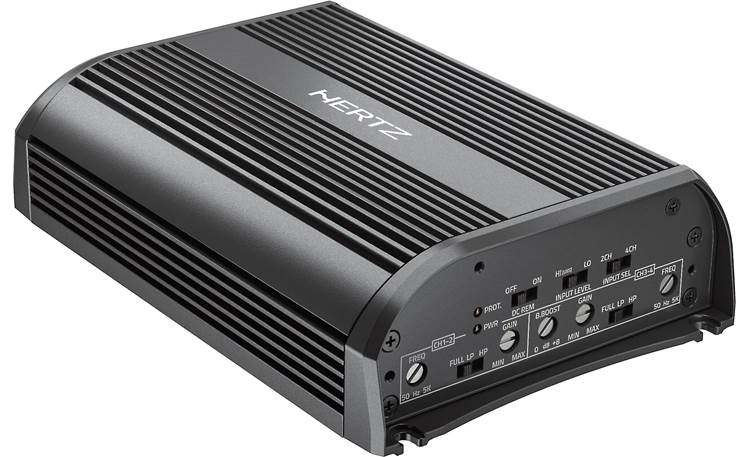

SP4.500
For those who like it loud
Hertz Audio's SP 4.500 amplifier will blow you away with the powerful boost it adds to your music. Hertz's high-efficiency Advanced D-Class (ADC) amp technology pumps out four channels of 90 watts RMS each — driving your high-performance speakers and components to new heights of impact and enjoyment. You can also set up an SP 4.500 to play a pair of front speakers while also powering a subwoofer with up to 300 watts RMS — a great way to power a complete system. A variable bass boost helps fine-tune your sub's thump when the amp's set up this way.
Fits in and integrates well

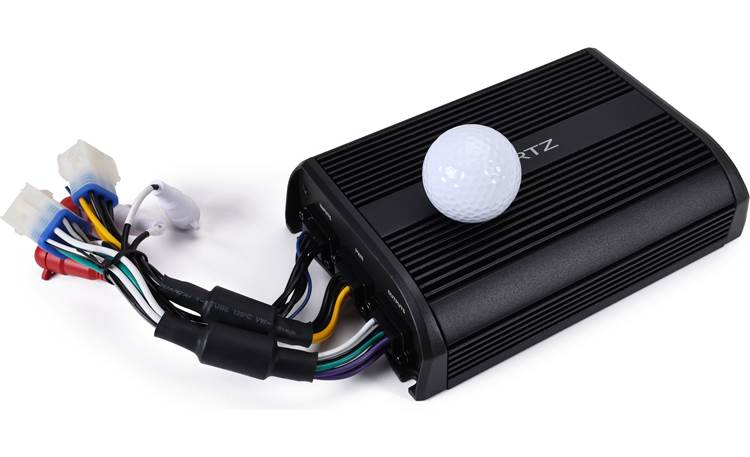

Not only is the amp incredibly small, but it also carries an IP55 dust- and water-protection rating, so it'll work well in motorcycle, marine, and powersports applications. The amp's power, input, and output harnesses are sealed and the internal circuits conformal-coated to ensure safe operation and protection from corrosion. Hertz's Universal Speakers Simulator (USS) technology works with your factory receiver's speaker load detection circuit to prevent shutdowns when you use the radio's speaker wiring for the amp's input signal.
Product highlights:
- 4-channel amplifier
- 90 watts RMS x 4 at 4 ohms
- 150 watts RMS x 4 at 2 ohms
- 300 watts RMS x 2 bridged at 4 ohms,
- CEA-2006 compliant: 75 watts RMS x 4 at 4 ohms , 1% THD+N, 14.4 volts
- Hertz Advanced D-Class amp technology (frequency response: 10-35,000 Hz)
- variable high- and low-pass filters (50-5,000 Hz, 12 dB/octave)
- variable bass boost on Ch 3-4 (0-8 dB at 45 Hz)
More Info:
- IP55 rated for dust- and water-protection

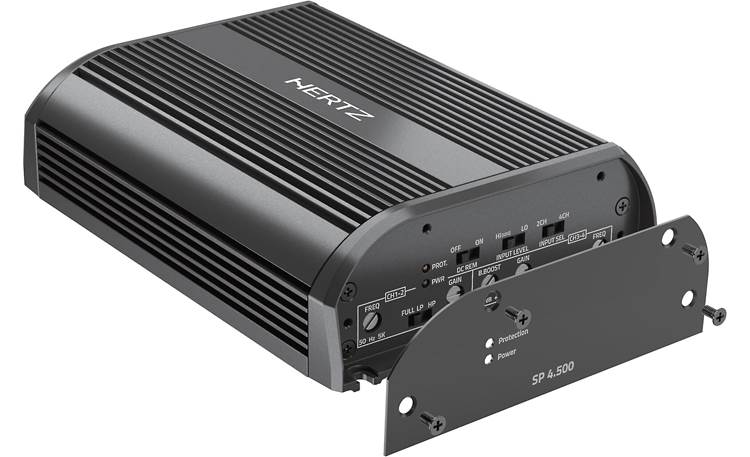

- conformal-coated circuit boards, aluminum chassis, protective control cover

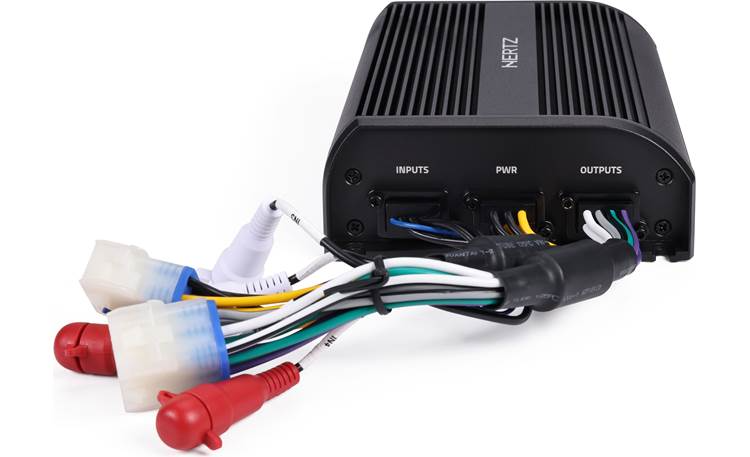

- power, input, and output wire harnesses sealed for protection
- preamp and speaker-level inputs
- USS circuit supplies load for receiver output to prevent shut-down
- RCA-to-wire adapters included
- wiring, fuse, and hardware not included with amplifier
- 8-gauge power and ground leads and a 25A fuse recommended
- dimensions: 8.85"W x 1.94"H x 5.15"D
- warranty: 1 year
- MFR # SP 4.500
- Item # 301SP4500

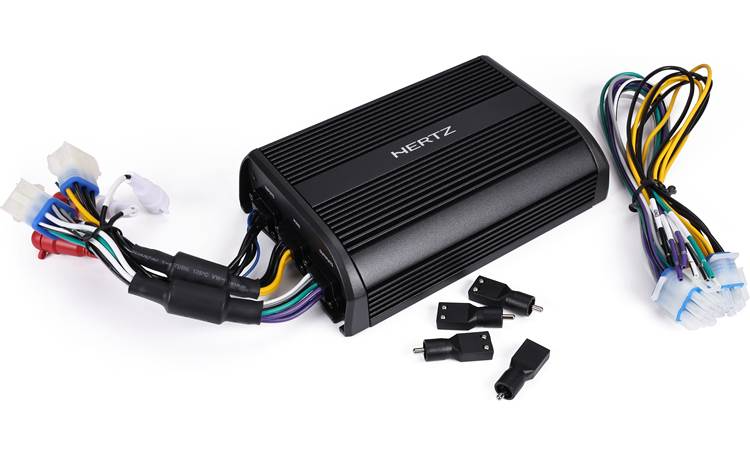

What's in the box:
- 4-Channel amplifier with attached 8" input/output & power/ground harnesses

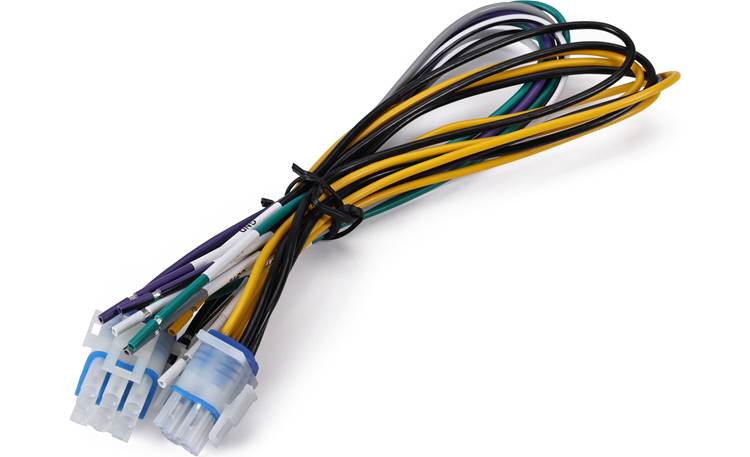

- 16" Speaker output harness
- 16" Power & ground harness

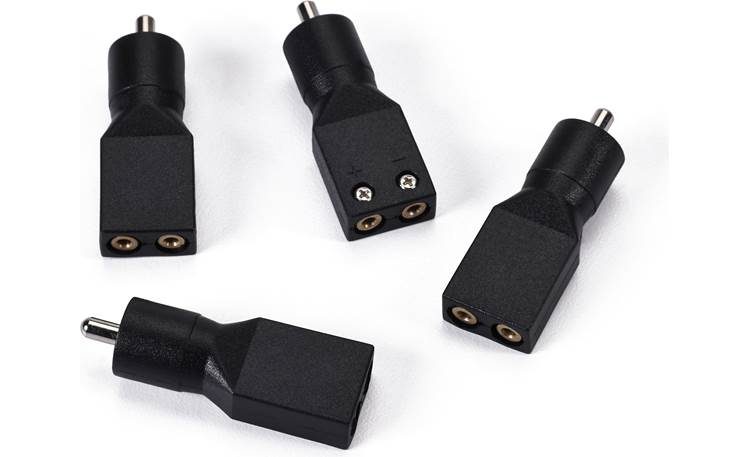

- 4 Speaker to RCA adapters
- Four 1" screws
- User manual
